Thermocouple

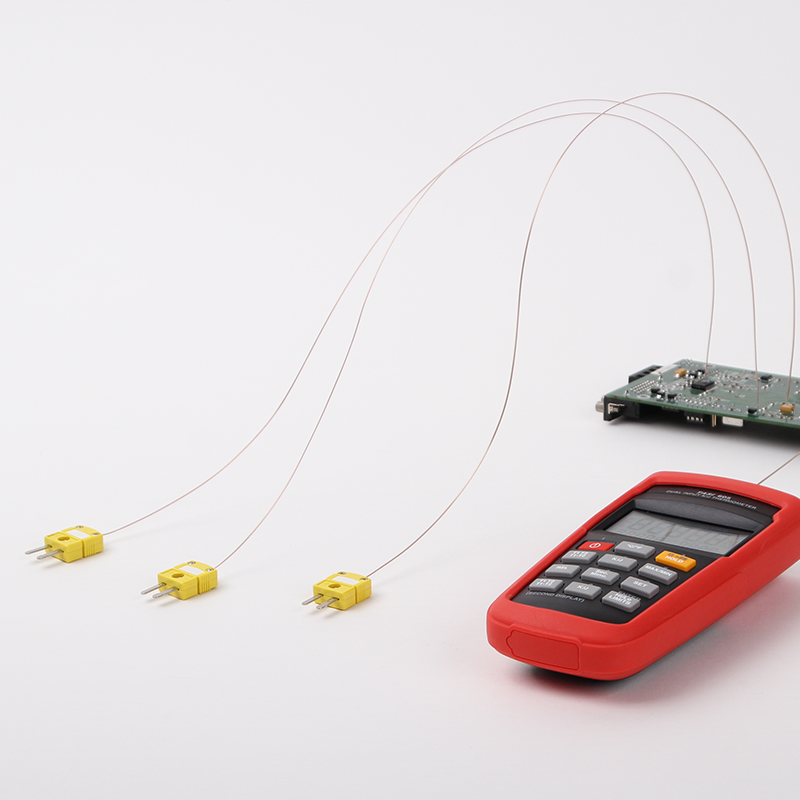

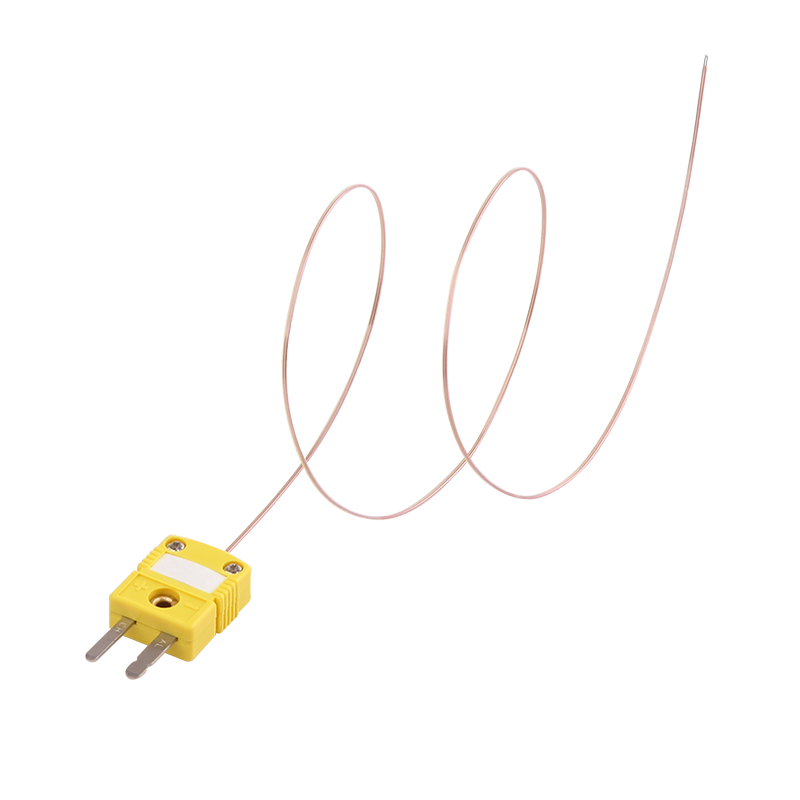

Contact exposed PFA thermocouple

Simple PFA insulated thermocouples use a solid parallel 0.255mm diameter wire for very fast response without a miniature thermocouple plug.

Product nameThermocouple temperature measurement line
Security Level1.1°C or 0.4% reading (larger value)
Index numberK type
Overlying insulation materialHigh temperature fiberglass textile belt
Overlying insulation layer temperature resistance-70 to 260 degrees
Conductor diameter2×0.255mm
Overall outer diameter0.6×1.0mm
lengthcustom made
Wire insulation markRed is negative / yellow is positive
standardMeet Meets ANSI MC 96.1 Special Limits of Error
