| Product name | Thermocouple connector |
| Model | ETA1090K |
| Index number | K type |
| Colour | yellow |
| Temperature range | -29°C to +180°C |
| Positive electrode + conductor material | Nickel network |
| Negative electrode - conductor material | Nickel silicon |
No video
Connectors and panels

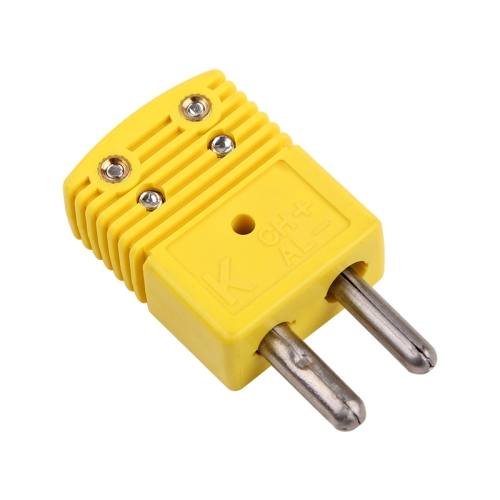

ETA1090K Standard thermocouple connector
A popular standard connector that is ideal for interconnecting thermocouple sensors and extension or compensation cables. The chisel contact pins are narrow and wide to avoid erroneous connections, and the connector body is marked with positive and negative polarity. They are rated for -29°C to +180°C.
- ANSI color code
- Rugged construction
- detachable/reversed writing window
- recessed cover screw
- Suitable for stranded or single stranded wires up to 20AWG in diameter
- Quick connect contact washer
- Inner part line
- Combination cross recess / slotted screw
