Probe voltage level: the cornerstone of safe and accurate measurement

When performing electronic measurements, the probe is a bridge connecting the circuit under test with the oscilloscope. The "voltage level" is one of the most critical technical parameters of the probe, which is directly related to the measurement safety and accuracy of the results.

What is a voltage class?

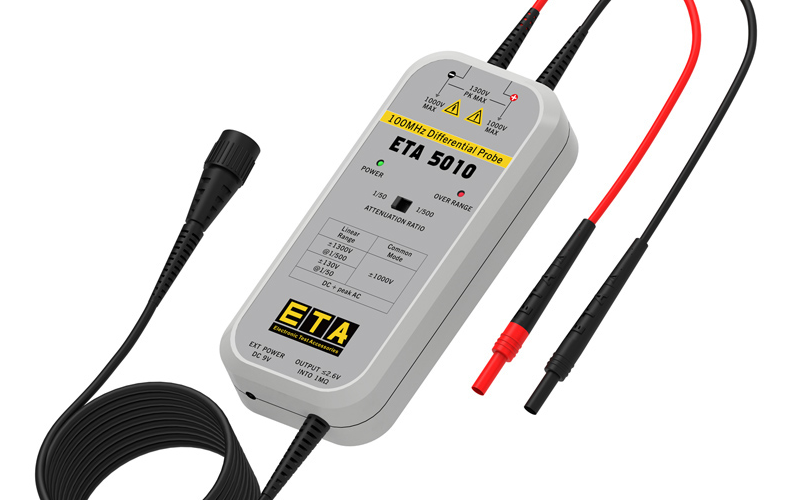

Voltage level refers to the highest voltage that the probe can safely measure. This value is usually marked on the probe in the form of "peak" or "DC voltage AC peak", and the unit is volts (V) or kilovolts (kV). For example, a probe labeled "300V CAT II" indicates that it can be used for circuit measurements below 300 volts in the secondary category.

Why is it so important?

Security: This is the primary reason. If the probe is used in excess of the voltage level, it may cause the internal components to break down, the insulation layer to be broken down by arc, and even cause explosion or fire, which seriously threatens the safety of personnel and equipment.

Ensure accuracy: when the probe is designed, its attenuation ratio, bandwidth and other parameters are rated

How to choose and use?

On the high principle: estimate the maximum voltage of the circuit under test (including DC and AC peak values), and select a probe with a voltage level much higher than this value. It is good engineering practice to leave sufficient margin for transient high voltages.

Category of interest: View CAT safety levels (e. g., CAT II, CAT III), which define the measurement environment (e. g., home appliances, power distribution boxes, etc.) in which the probe is applicable and must be matched to ensure safety.

Regular inspection: check whether the probe insulation is damaged or cracked before each use, and test whether the lead wire is in good condition.

In short, the probe voltage level is the safety of the measurement of the red line, must not be crossed. Proper selection and use of probes is a prerequisite for obtaining reliable data and protecting the safety of personal equipment.
