Current probe

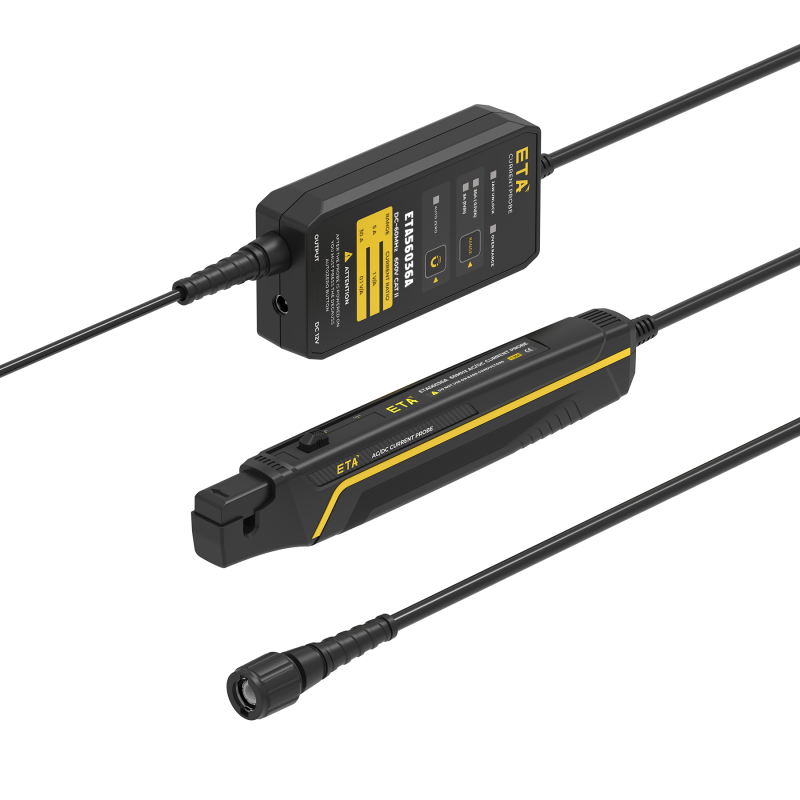

ETA56036A AC/DC probe

A current probe detects the current flowing through a conductor and converts it into a waveform that can be seen on an oscilloscope. The current probe uses a hybrid technology including a Hall-effect sensor (sensing DC current) and a current transformer (sensing AC current). The open-ended design current probe is easily connected to and disconnected from the conductor, providing a DC to 60MHz measurement bandwidth. Product features:
-AC/DC dual purpose
-Current measurement range: 1mA to 30Arms
-Can measure thin cable (Ø5mm)
-Accurately measure, analyze and display distorted current waveforms and harmonics

ModelETA56053A
Range

5Arms          1V/A

30A rms    0.1V/A

Current range

5A ±1%      ±1mA

30A ±1%    ±10mA

Resolution

5A                 1mA

30A              10mA

Peak current50A
Typical frequency response curvePlease refer to the picture on the right
Maximum operating voltage
600V  CATII   300V  CATIII
Frequency rangeDC-60MHz
Typical DC signal linearityPlease refer to the picture on the right
Typical Phase TransferPlease refer to the picture on the right
Jaw sizeMaximum 5mm
Overall dimensions

Control box:91.5mmx40mmx26.5mm    Current clamp:176mmx39.5mmx18mm

Cable lengthCable length from control box to BNC connector:1m     Cable length from control box to current clamp: 1m
Operating temperature0 ℃ to + 50 ℃
Humidity0°C to +40°C,Humidity85%RH;+40'℃~+50'℃,Humidity45%RH
Safety regulations

Meets EN61010-1/A2:1995;Meets EN61010-2-032:1995
