Current probe

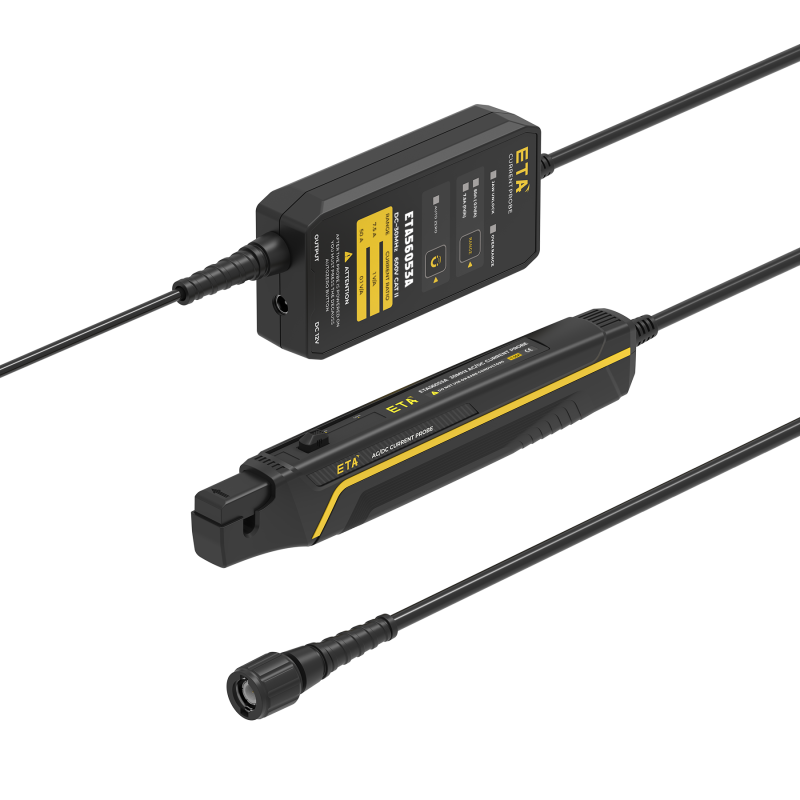

ETA56053A AC / DC probe

A current probe detects the current flowing through a conductor and converts it into a waveform that can be seen on an oscilloscope. The current probe uses a hybrid technology including a Hall-effect sensor (sensing DC current) and a current transformer (sensing AC current). The open-ended design current probe is easily connected to and disconnected from the conductor, providing a DC to 30MHz measurement bandwidth. Product features:
-AC/DC dual purpose
-Current measurement range: 50mA to 500Arms
-Can measure thin cable (Ø5mm)
-Accurately measure, analyze and display distorted current waveforms and harmonics

ModelETA56053A
Range

7.5Arms   1V/A

50A rms    0.1V/A

Current range

7.5A ±1% ±1mA

50A ±1% ±10mA

Resolution

7.5A       1mA

50A        10mA

Peak current75A
Typical frequency response curvePlease refer to the image on the right.
Maximum working voltage
600V  CATII   300V  CATIII
Frequency rangeDC-30MHz
Typical DC signal linearPlease refer to the image on the right.
Typical phase shiftPlease refer to the image on the right.
Jaw sizeMaximum 5mm
Overall dimensions

Control box:91.5mmx40mmx26.5mm    Current clamp:176mmx39.5mmx18mm

Cable lengthLength of the cable from the control box to the BNC connector:1m     Length of the cable from the control box to the current clamp: 1m
Operating temperature0 ℃ to + 50 ℃
Humidity0°C to+40°C,Humidity85%RH;+40°C~+50°C,Humidity45%RH
Safety regulations

Meets EN61010-1/A2:1995;Meets EN61010-2-032:1995
