| Product name | Thermocouple connector |
| Model | ETA1080K |
| Graduation | K type |
| Color | Yellow |
| Temperature range | -29℃ ~ +180℃ |
| Cathode + conductor material | Nickel chromium |
| Anode-conductor materials | Nickel silicon |
No video
Connectors and panels

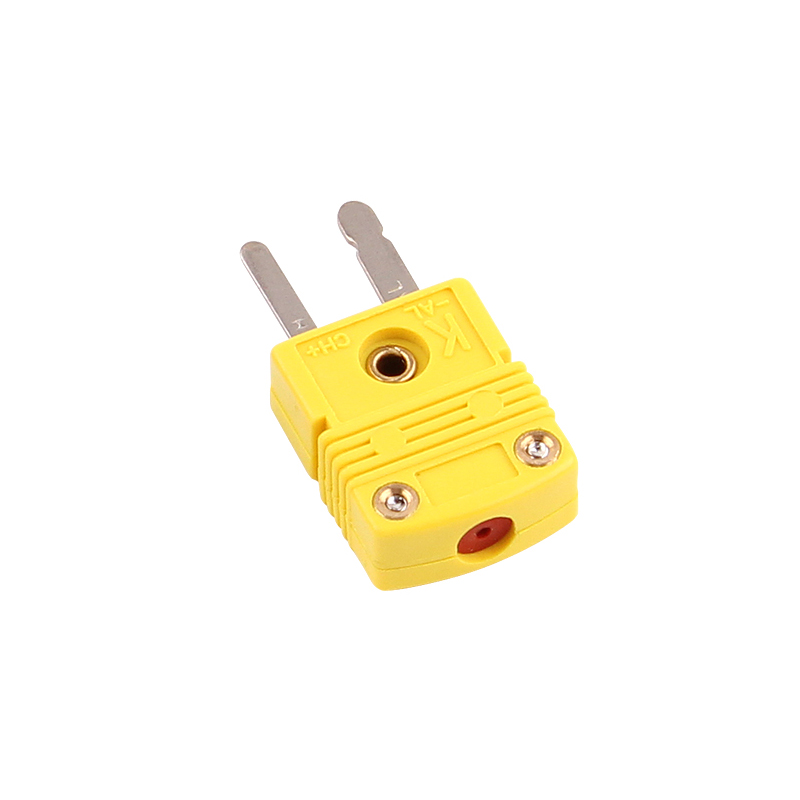

ETA1080K Micro thermocouple connector
The popular flat pin micro connector is very suitable for connecting thermocouple sensors with extension lines or compensation cables. The chisel contact pins are different in width and narrowness to avoid incorrect connection, and the connector body is specially marked with positive and negative polarity. Their rated temperature ranges from - 29℃to +180℃
- ANSI color code
- Strong and durable structure
- Removable/Reversible writing window
- Depressed cap screw
- Suitable for twisted or single stranded wire with diameter up to 20AWG
- Fast connection contact grommet
- Internal divider
- Composite cross groove/slot screw
