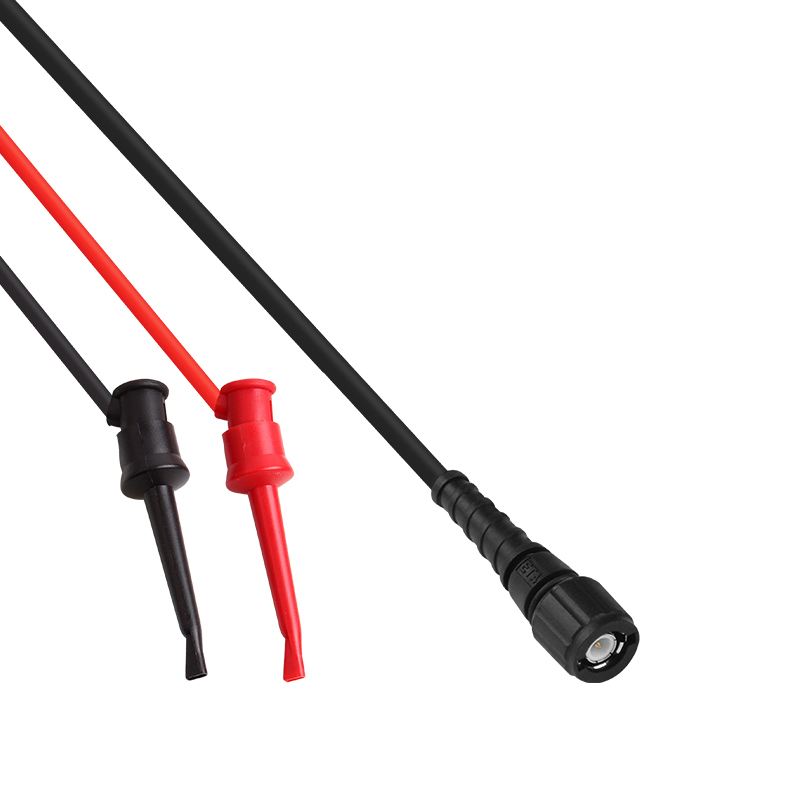

Using high-quality RG58/50Ω silicone cable, impedance matching all signal sources, oscilloscope input and output impedance, reducing transmission loss. Pure copper BNC high-frequency plug, reliable contact, specially molded red and black bifurcated cables, soft and durable, not easy to break, connected to red and black retractable IC hooks, suitable for measuring the lead signal of IC or component devices.
-Maximum rated input: 30Vac...60Vdc /3A
-The main line is 1 meter, 15cm after the bifurcation
-High quality soft silicone coaxial cable
-50Ω impedance matching all signal sources/oscilloscopes
| Product name | BNC to IC hook test line |
| Model | ETA2042 |
| Withstand voltage / current | 30Vac...60Vdc / 3A Max |
| Llength | 1m |
| Coaxial line type | RG58 / 50Ω |
| Coaxial diameter | 5mm |
| Lnner core diameter | 0.5mm |
| Body material | Silica gel |
| Working environment | 0-40℃ |
| Colour | Black |
