Crocodile clip

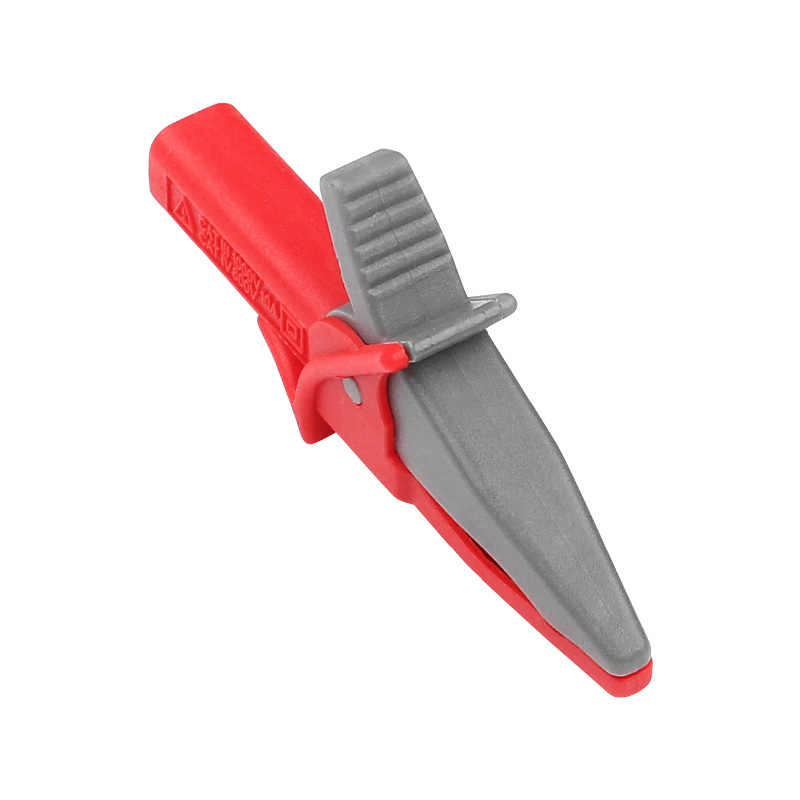

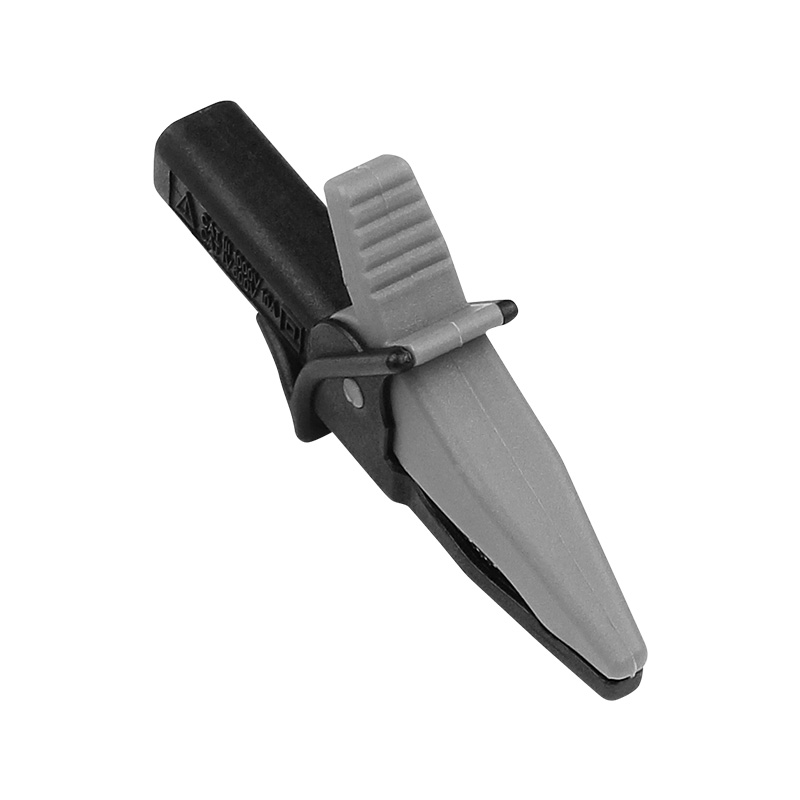

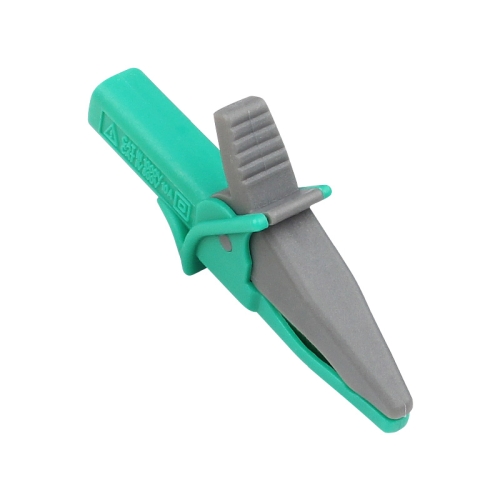

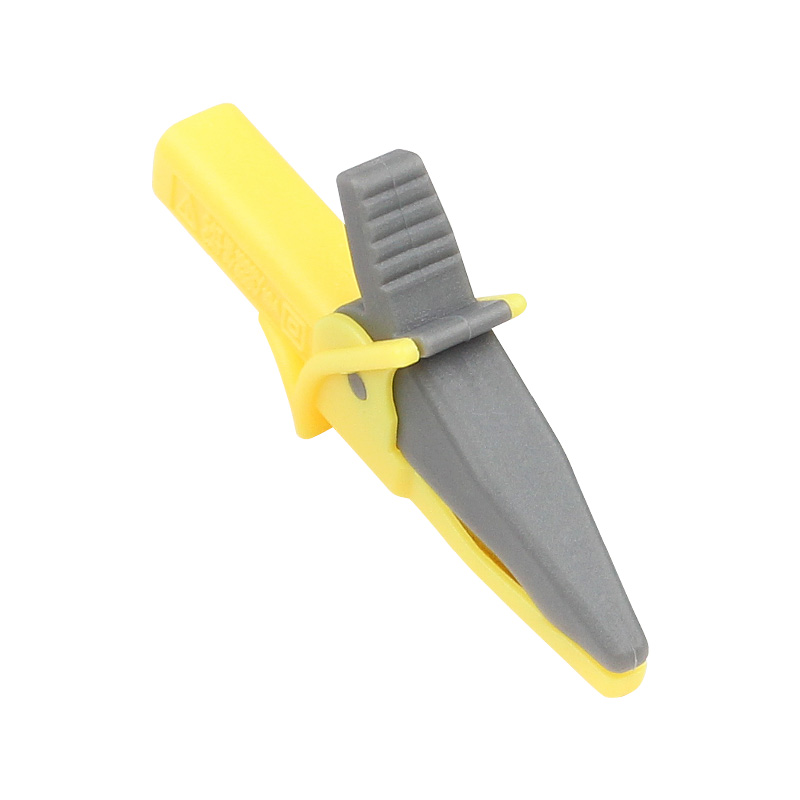

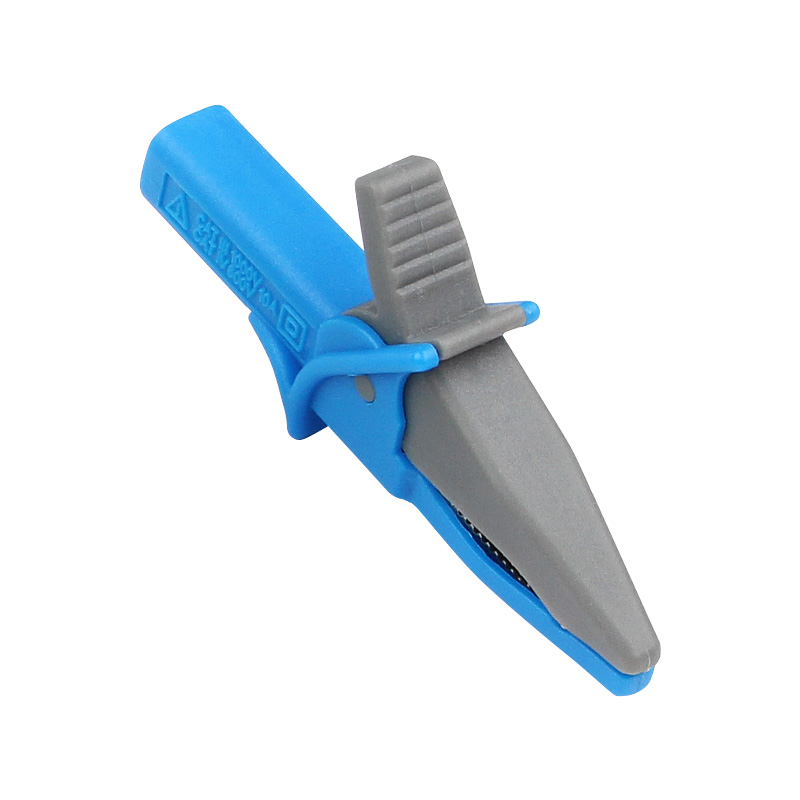

ETA1485 Fully insulated alligator clip

Copper high current fully insulated alligator clip 1000V/10A, the shell is PA insulated nylon (temperature resistant and flame retardant). This alligator clip can not be directly used for welding wire, but need to weld the wire to a 4 mm banana plug (sheath or non-sheath can be), and then the banana plug can be directly inserted into the alligator clip tail, convenient and fast connection.

Product NameHigh current alligator clip
ModelETA1485
Safety grade1000V CAT Ⅲ
Current10A Max
Insulation typeTotally enclosed type
Wire connectionBanana plug
Jack connection size4mm
Back connection compatibilityBanana plug、telescopic banana plug、 sheath banana plug

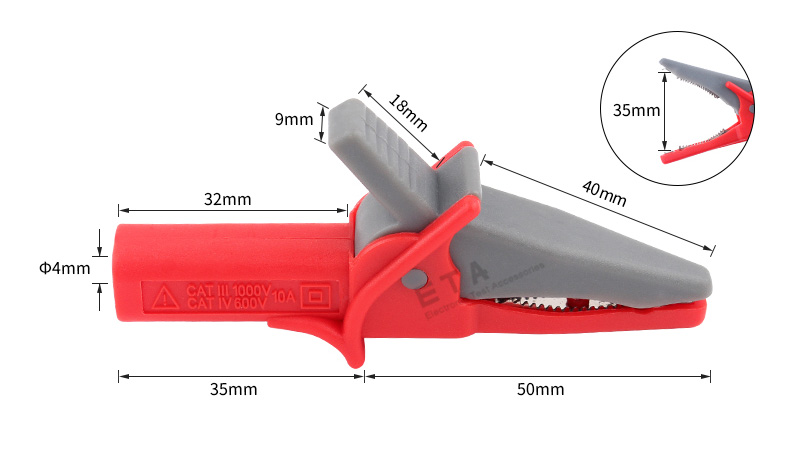

Opening35mm
Tooth styleTooth profile
Length85mm
Clip materialNickel plated steel
Insulator MaterialPA
ColorRed ,black,yellow,blue,green
