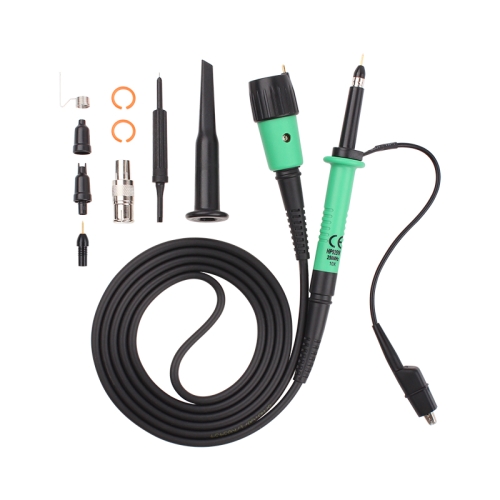

HP9251Roscilloscope high frequency probe - 250MHz probe, using safe BNC connector, with reading recognition function, can be replaced by low resistance gold-plated needle, 10X fixed attenuation (no switch adjustable), the main body of the probe is made of high-strength plastic, snap-type rotating grounding wire, all bending force using soft plastic to ensure the service life of the cable.
Product characteristics:
- Made in Taiwan
- 250MHz operating frequency
- X10 fixed attenuation
- Gold-plated needle can be replaced
- Including "attachment package" is very suitable for engineers to use.
- Readout function, the oscilloscope automatically identifies the switching attenuation gear, directly displays the correct voltage value, without conversion, can reduce errors.
- Suitable for analog or digital oscilloscopes from 20M to 100MHz
| Product name | Oscilloscope passive probe |
| Model | HP9251R |
| Attenuation ratio | 10:1 |
| Bandwidth | DC to 250MHz |
| Rise time | 1.4nS |
| Input impedance | 10MΩ (oscilloscope input impedance 1MΩ) |
| Input capacitance | About 13 pF |
| Compensation range | 10 to 30 pF |
| Input voltage | 600V CAT I, 300V CAT II (DC+peak AC) |
| Operating temperature | 0 ℃ to + 50 ℃ |
| Humidity | 85% RH or less (at 35 ℃) |
| Overall length | 1.2m |
| Safety regulations | Meets EN61010-031 CAT II |
