Current probe

ETA5301A/B AC / DC current probe

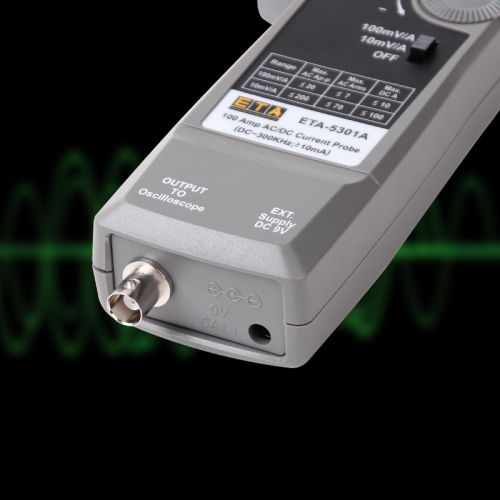

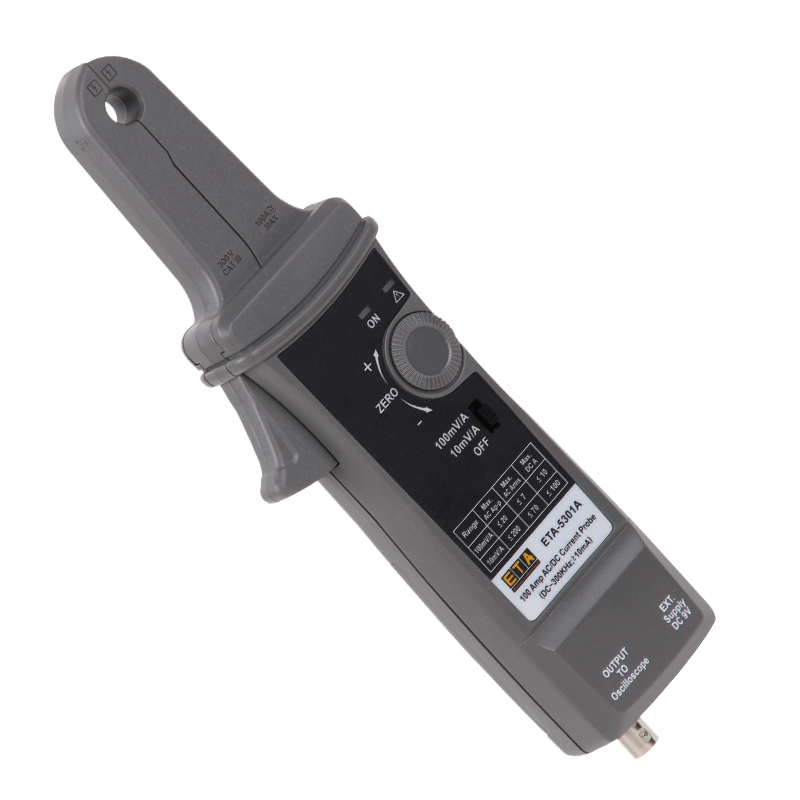

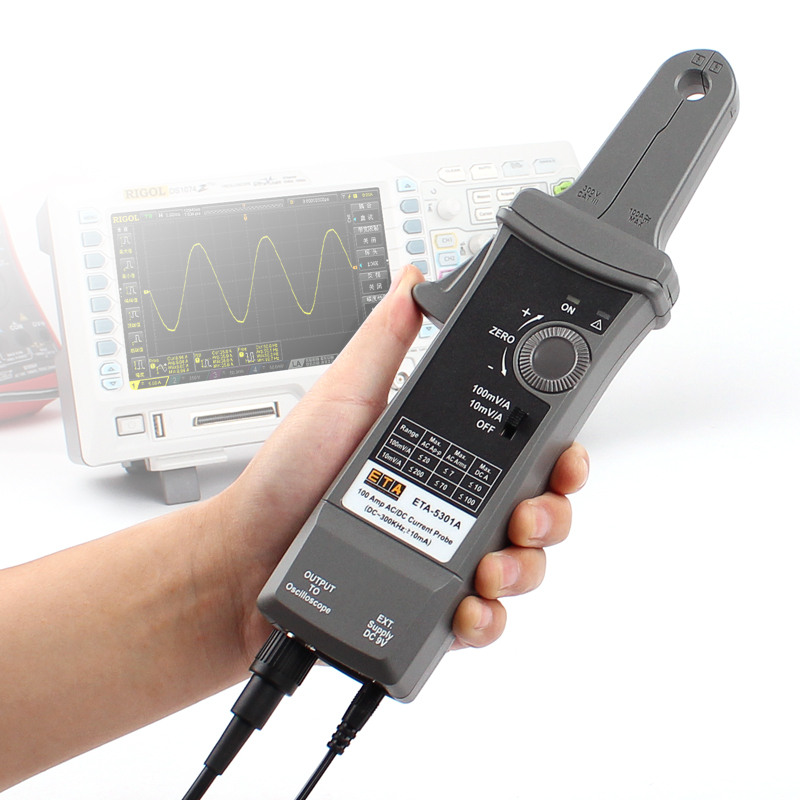

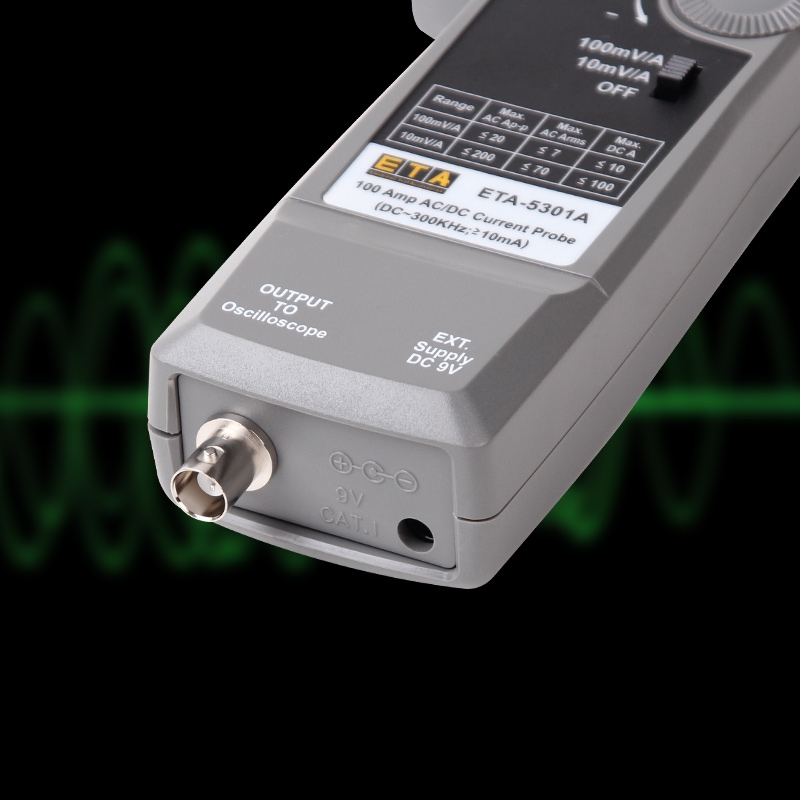

ETA5301A/B is a universal oscilloscope current probe, which is compatible with more than 95% of the oscilloscopes on the market. The frequency response of up to 300KH ranges from 50mA to 200A (peak value), and the output terminal of BNC. Connecting oscilloscope can accurately measure AC or DC current waveform. Three-position sliding switch on handle panel can choose range and ON/OFF.



- AC/DC dual purpose

- Current measurement range: 50mA to 200A

- Measurable thin cables (11mm)

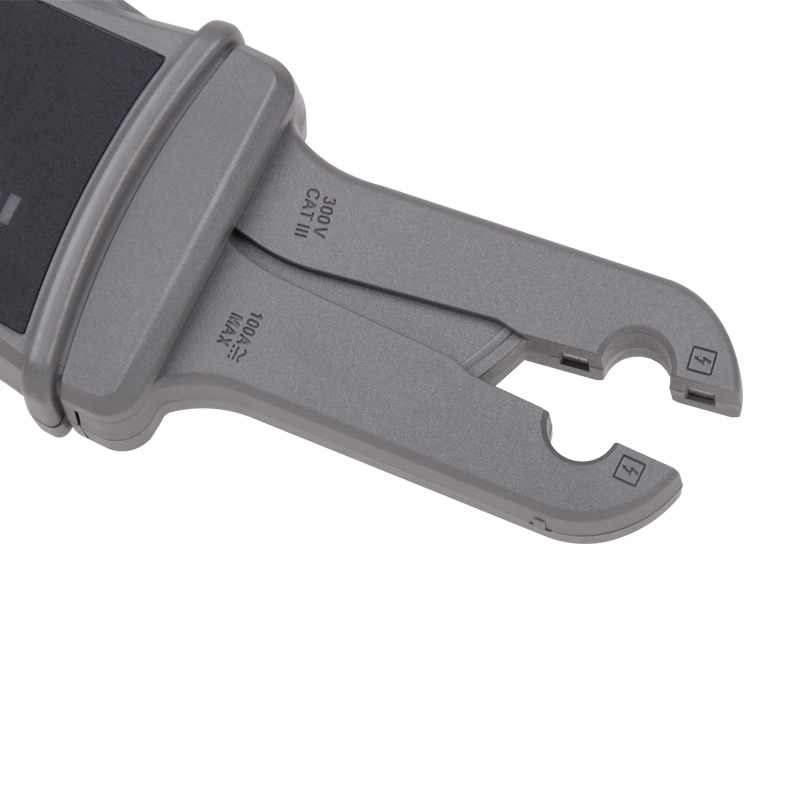

- Narrow clamp design is convenient for use in narrow space with dense wiring.

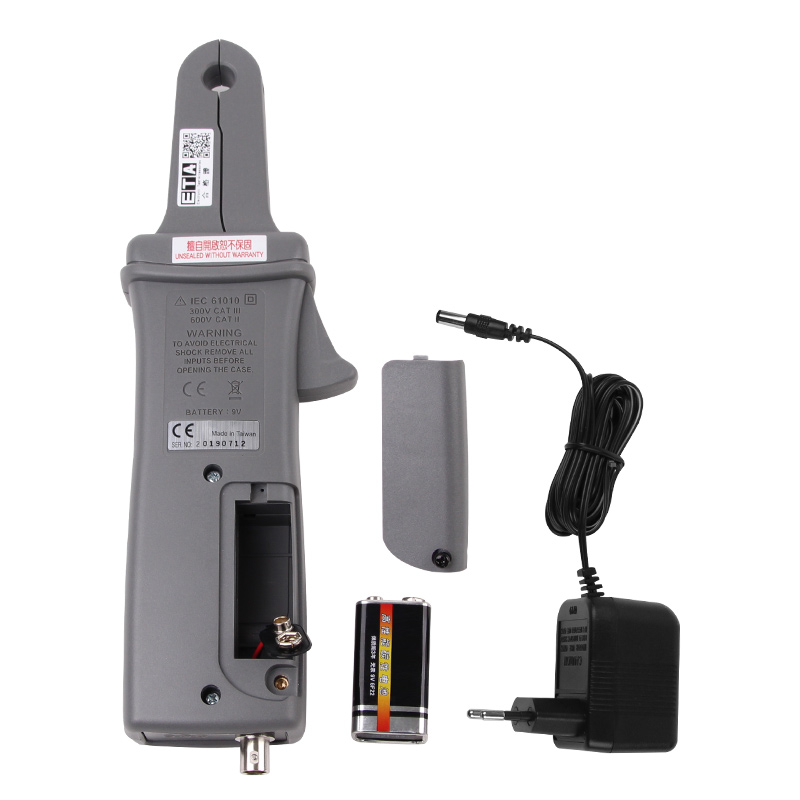

- 9V subtractive battery, 13 hours continuous operation

- Accurate measurement, analysis and display of distortion current waveforms and harmonic wave


Elecical characiersics are applicable to any brand of osciloscope that has been verifed. The oscioscope must be preheated for atleast 20 minutes and used inthe temperalure range of 10-30'℃ and 0-80% RH.

MODELETA5301AETA5301B
Current range10 /100mA10 /100mA
Typical DC accuracy

±3% ±50mA at 100mV/A

+4% +50mA at 10mV/A
Attenuation ratio50mA to 10A peak range50mA to 40A peak range


±4% ±50mA at 10mV/A


500mA to 40A peak range


±15% Max ±50mA at 10mV/A

+15% Max +50mA at 10mV/A
40mA to 100A peak range40A to 200A peak range

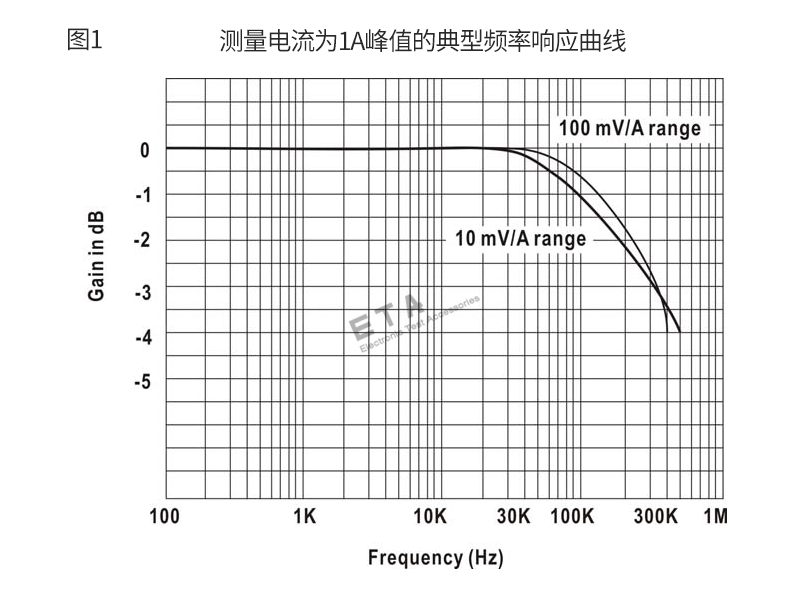

Typical gain and frequency comparisonRefer to figure 1
Maximum operating currentReference sheet 2
Maximum operating voltageReference sheet 2
Frequency rangeDC to 300KHz （-3dB）DC to 300KHz （-3dB）
Typical battery types and life9V NEDA1604A, IEC6LR61 (13h)9V NEDA1604A, IEC6LR61 (13h)

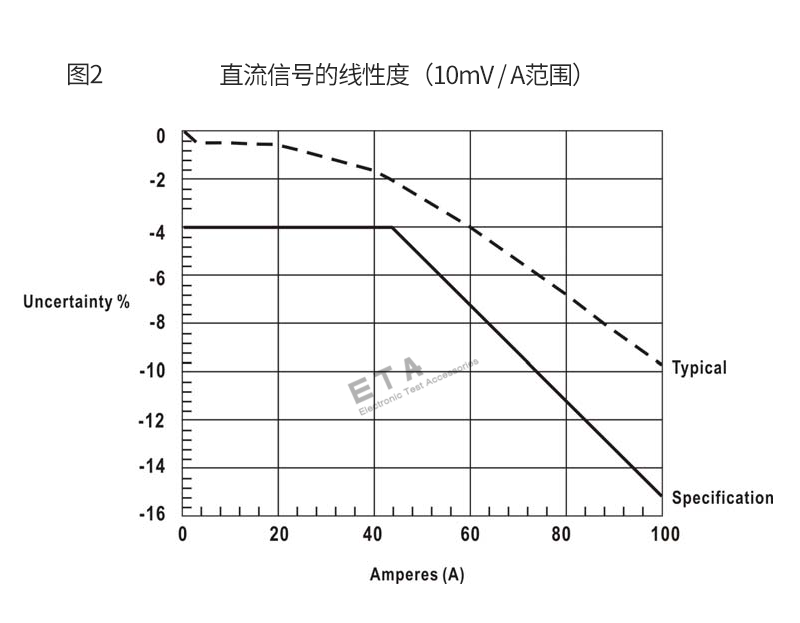

Typical DC signal linearityRefer to figure 2

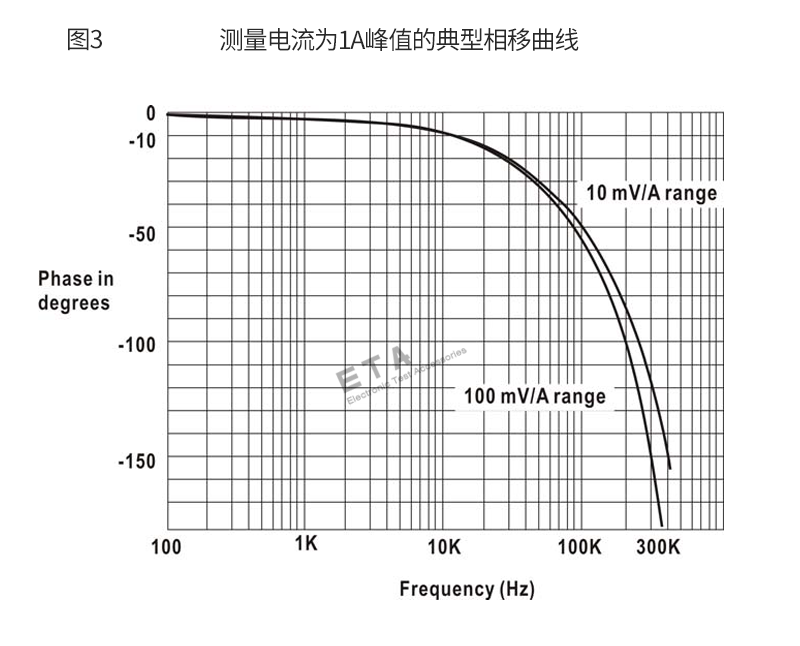

Typical phase shiftRefer to figure 3

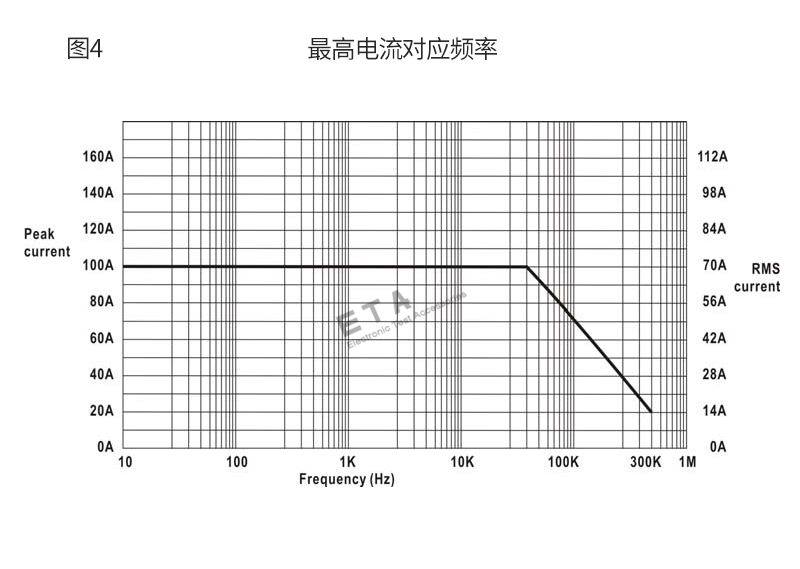

Maximum current corresponding frequencyRefer to figure 4
Operating temperature0 ℃ to + 50 ℃0 ℃ to + 50 ℃
Humidity95% RH or less (at 0~40 ℃)95% RH or less (at 0~40 ℃)
Safety regulations

Meets EN61010-1/A2:1995

Meets EN61010-2-032:1995

Meets EN61010-1/A2:1995

Meets EN61010-2-032:1995
