ETA5301 AC / DC current probe

ETA5301 is a universal oscilloscope current probe, which is compatible with more than 95% of the oscilloscopes on the market. The frequency response of up to 100KHz ranges from 50mA to 100A (peak value), and the output terminal of BNC. Connecting oscilloscope can accurately measure AC or DC current waveform. Three-position sliding switch on handle panel can choose range and ON/OFF.

- AC/DC dual purpose

- Current measurement range: 50mA to 100A

- Measurable thin cables (11.8mm)

- Narrow clamp design is convenient for use in narrow space with dense wiring.

- 9V subtractive battery, 55hours continuous operation

- Accurate measurement, analysis and display of distortion current waveforms and harmonic wave

Product PDF

DOWNLOAD

	10A	100A
Current range	100mA...10A peak	500mA...40A peak	40A...100A peak
Signal output accuracy%	≤ 3 % + 5mV	≤ 4 % + 500µV	≤ 15%
Phase shift	≤ 1.5°	≤ 1°	≤ 1°

Current range 100mV/A	7A AC 10A DC
Current range 10mV/A	70A AC 100A DC

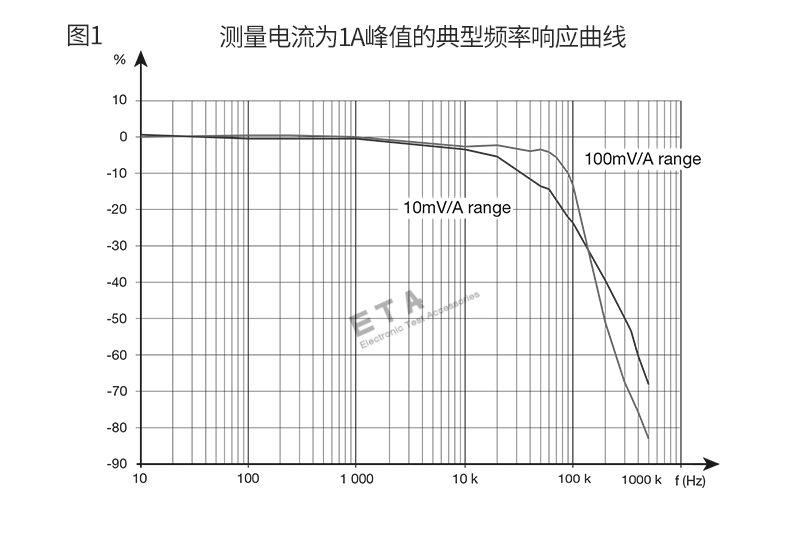

Typical frequency response curve	Refer to figure 1
Measuring current range	50mA~100A peak
Maximum operating voltage	600V CATⅢ
Frequency range	DC to 100KHz （-3dB）
Typical Battery Types and Life	9V NEDA1604A, IEC6LR61 (约55小时)

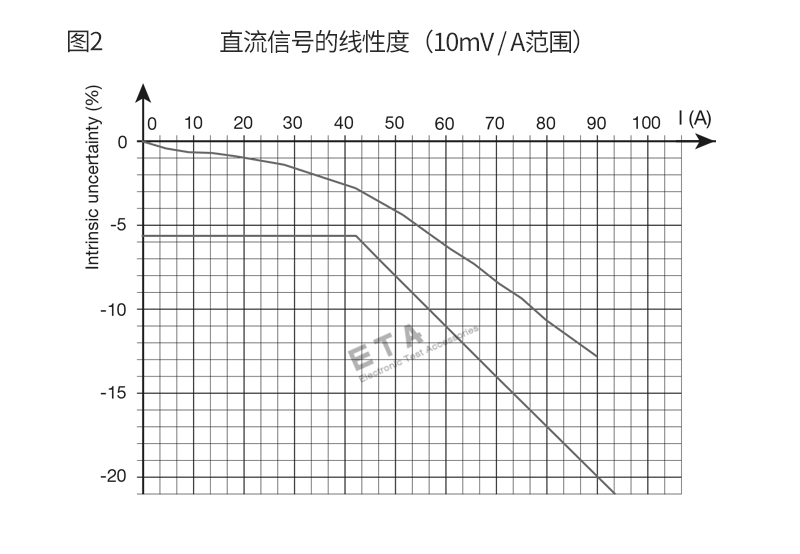

Typical DC signal linearity	Refer to figure 2

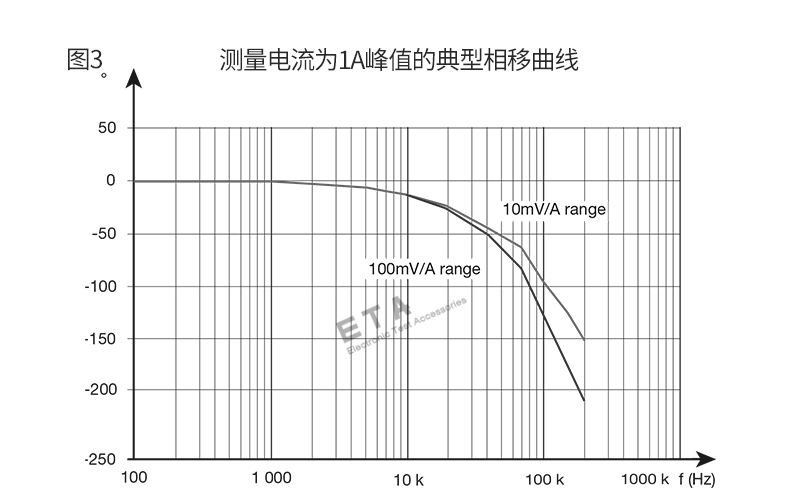

Typical phase shift	Refer to figure 3
Clamp opening size	Maximum 11.8mm
Overall size	231 x 67 x 36mm
Cable length	2m
Operating temperature	0 ℃ to + 50 ℃
Humidity	95% RH or less (at 0~40 ℃)
Safety regulations	Meets EN61010-1/A2:1995 Meets EN61010-2-032:1995
