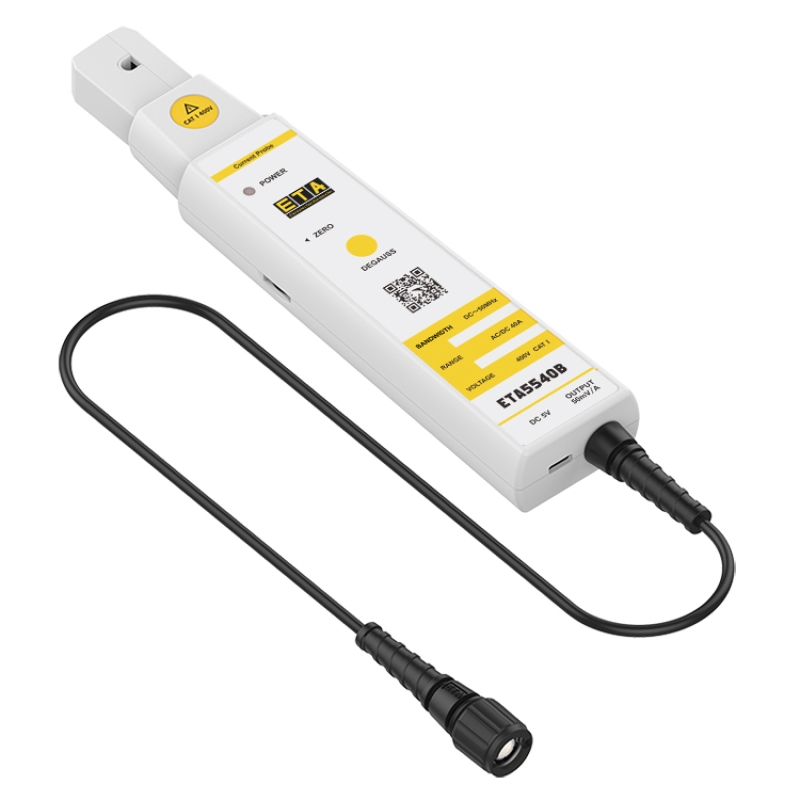

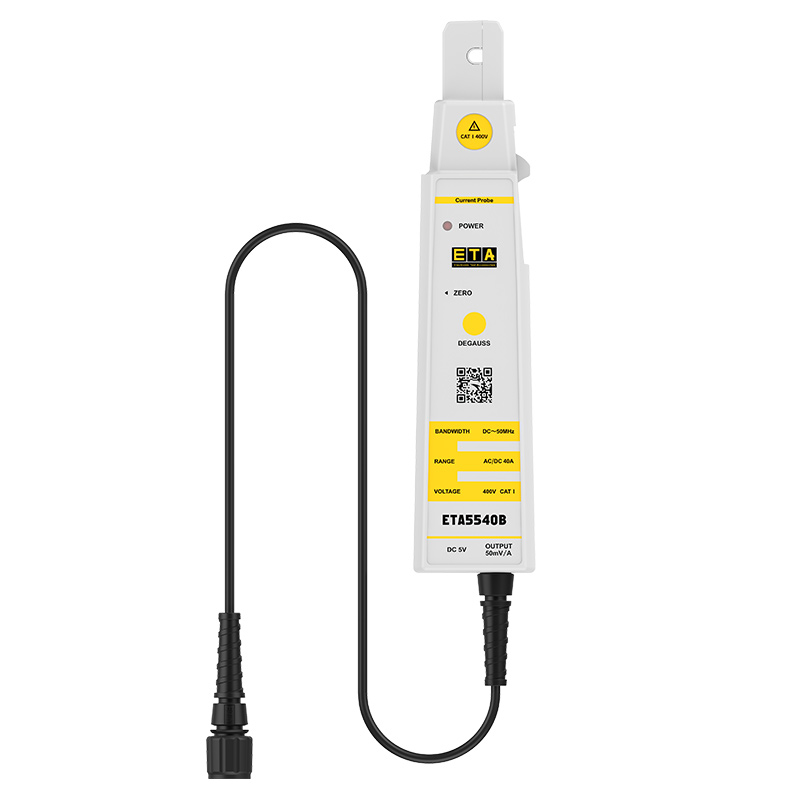

ETA5540B AC / DC current probe

The current probe can detect the current flowing through the conductor and convert it into a voltage that can be seen and measured on an oscilloscope. The current probe uses a hybrid technology including a Hall-effect sensor (induction of direct current) and a current transformer (induction of alternating current). The open-ended design of the current probe is easy to connect and disconnect with the conductor, providing a measurement bandwidth from DC to 100 MHz.



ModelETA5540B
Bandwidth50MHz
Rise Time≤7ns
Input typeAC/DC
Precision±2%
Current conversion ratio50mV/A
DC maximum40A
AC peak-to-peak value80A
AC effective value28A
Maximum pulse current50A(TP≤10uS)
Maximum working voltage400V CAT 1
Noise≤1mVrms
Linearity±1%
Delay20ns
Jaw diameterΦ4.5mm
Cable length130cm
Interface TypeBNC
Power supplyDC 5V/1A adapter
Size230×45.5×24.5mm
Weight200g
Working storage environment0~50℃, less than 95% RH

* All parameters are from the ETA manufacturer, if there is any change, please refer to the actual product and the manufacturer’s instructions
